EZI-LED™ Light Cables & Connector Accessories
Spare cables and accessories for the EZI-LED™ light system. Please read installation instructions for the exact use of each accessory.
Features

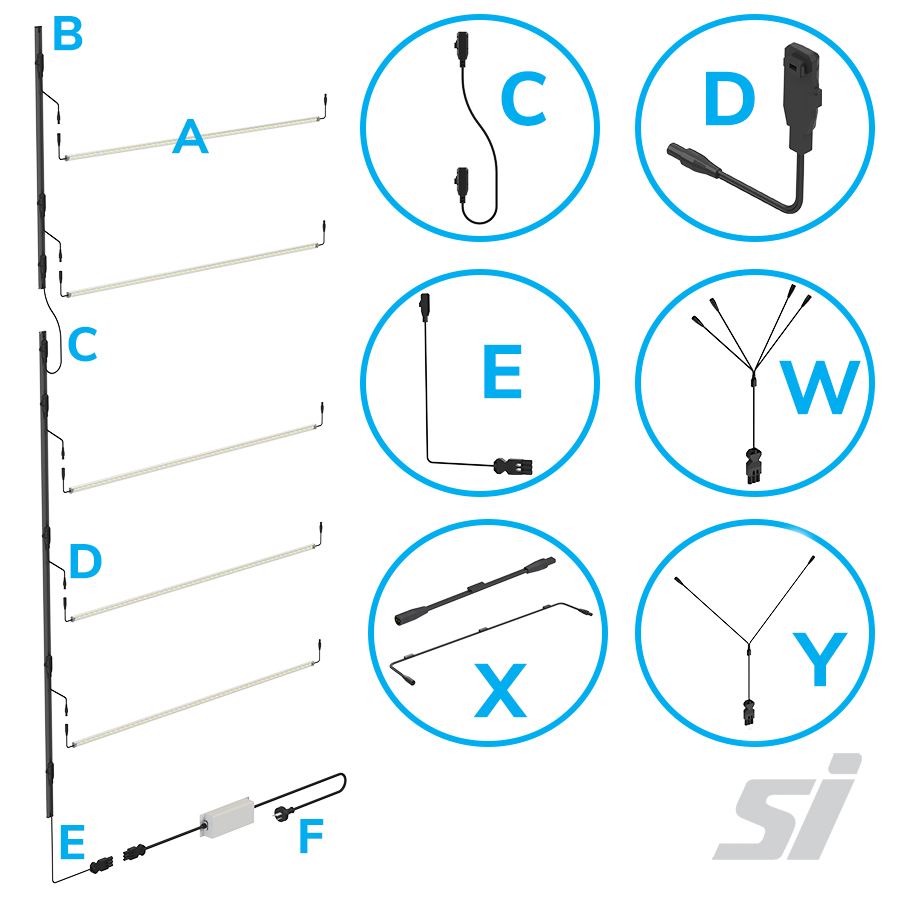

| Item | Code (SKU) | Description | Size (mm) | |
| A | LED Light Bar | LED-FL-65K | A magnetic LED light bar which emits light onto shelves. | 550, 850, 1150 |
| B | Magnetic Power Track | LED-PT | Magnetically attaches onto the front or side of the gondola to supply power. | 600, 900, 1200, 1800 |
| C | Power Track to Power Track Connector | LED-PC-TT | Connects one power track to another when needing to extend the power track on higher gondolas. | One Size (200) |
| D | Power Track to LED Light Connector | LED-PC-TL | Gives power from the power track to the LED light. | 300, 400, 500, 800 |
| E | Power Supply to Power Track Connector | LED-PC-MWTF | Connects the power supply to the magnetic power track. | One Size (1000) |
| F | Power Supply Transformer | LED-TF-MW24 | The main power supply for all lights. See 'Max LED's Per Power Supply' in the 'Specifications' table below. | 100 Watt, 150W, 200W |
| U | Mounting U-Clip | LED-FL-UCLIP | For mounting LED's to a non-magnetic flat surface. | One Size |
| Y | Power Supply Direct to LED Splitter (2-Way) | LED-PC-MW-2SPL | For use when daisy-chaining to link the power supply directly to the LED. Also used for splitting power to multiple rows when daisy chaining. | One Size (1000) |
| W | Power Supply Direct to LED Splitter (4-Way) | LED-PC-MW-4SPL | For use when daisy-chaining to link the power supply directly to the LED. Also used for splitting power to multiple rows when daisy chaining. | One Size (1000) |
| X | LED to LED Extension | LED-PC-LL | Links two LED's together for use when daisy chaining. | 125, 300, 800, 1000, 2500, 6000 |
SI Retail uses Mean Well power supply transformers with AU plugs for our LED light kits.
Simply plug the transformer into your fixed power point and on the other end, connect either a splitter cable or magnetic power track cable with power track.
Please read the EZI-LED™ Installation Instructions (see Documents section located at the top right of this page) before ordering. Then use the table in the specifications tab below to calculate what size power supply you require.
Specifications
| LED Lengths | 550mm | 850mm | 1150mm |
| Suits Shelf Lengths | 600mm | 900mm 914mm |
1200mm |
| Wattage Per Above LED Length | 6 | 9 | 12 |
| Max LED's Per Power Supply (100W) | 16 | 11 | 8 |
| Max LED's Per Power Supply (150W) | 25 | 16 | 14 |
| Max LED's Per Power Supply (200W) | 32 | 22 | 16 |
3 Year Warranty – EZI-LED™ Shelf Lighting
SI Retail offer a 3 Year Product Warranty on the EZI-LED™ Shelf Lighting System and Core Range of Accessories under the EZI-LED™ Brand. This warranty covers failure and defects in materials and workmanship for new EZI-LED™ products supplied by SI Retail. Products must be used as intended and correctly installed, as per the EZI-LED™ Installation Instructions (see Documents section located at the top right of this page).
Conditions apply; please refer to SI Retail’s Customer Care section on the website for additional information related to Returns Policy, Privacy Policy & Terms & Conditions.
Shipping & Returns
Add products to your cart to calculate shipping.
For your piece of mind, SI Retail accept returns! Items must be unused and sent back to us in a resellable condition (at the buyers expense) for a refund within 30 days from date of invoice. Please see our Returns Policy for more information.
Add On Products
|
|
Features

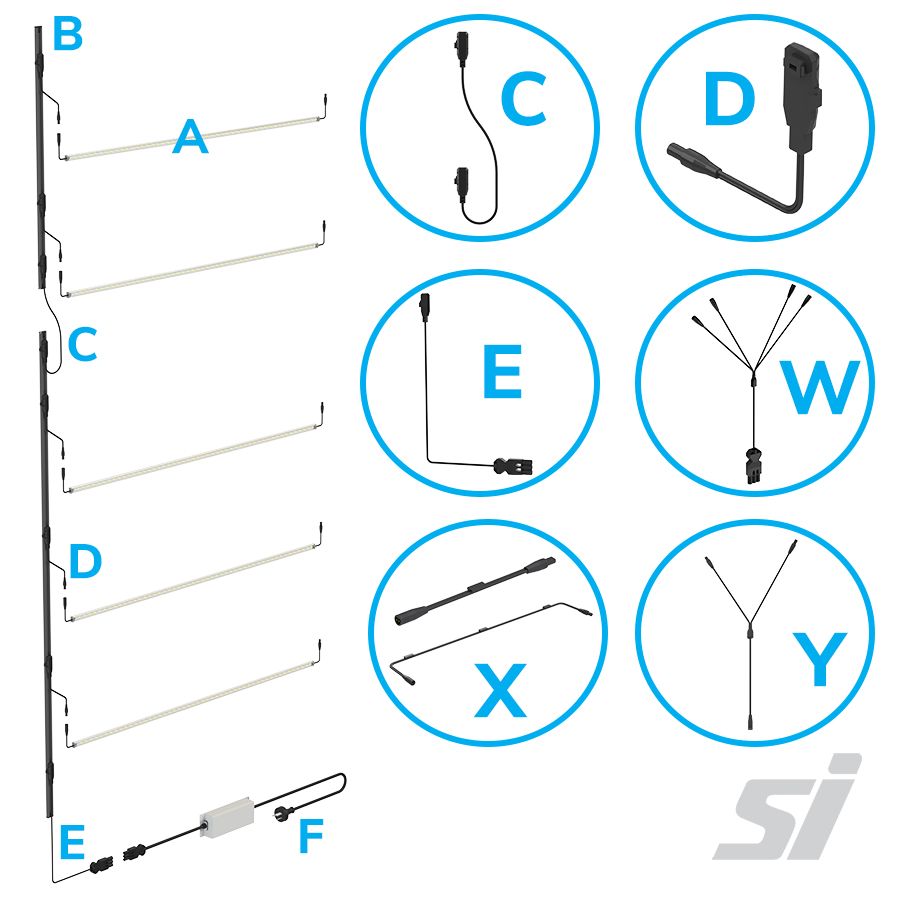

| Item | Code (SKU) | Description | Size (mm) | |
